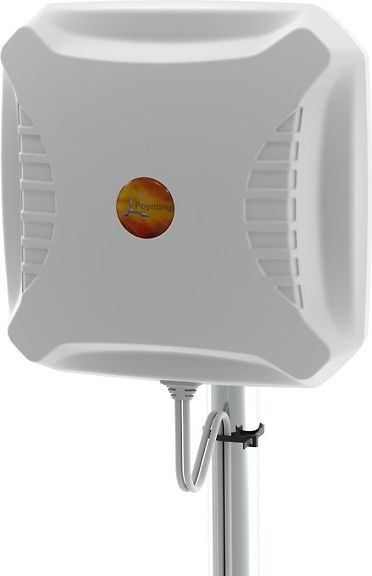

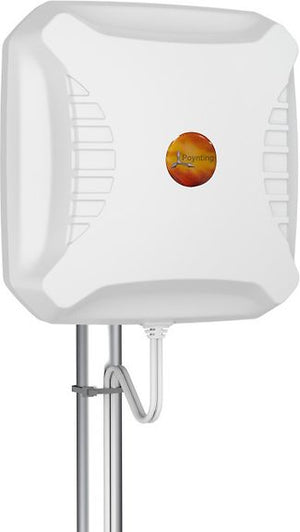

The Poynting XPOL-2-5G is a high-gain directional cross-polarised 2x2 MIMO antenna engineered to significantly boost 2G, 3G, 4G LTE, and 5G cellular reception across 690 to 3800 MHz bands.
The Poynting XPOL-2-5G directional cross-polarised antenna is designed to provide robust and high-performing cellular signal reception across multiple generations of mobile network standards, including 2G, 3G, 4G LTE, and 5G. Housed in a compact, weather-resistant enclosure, the unit integrates two separately fed cross-polarised elements configured for 2x2 MIMO operation, ensuring optimal data throughput and link stability.
Engineered with wideband capability, this antenna covers the full 690 to 3800 MHz frequency spectrum, delivering up to 9 dBi gain across 698-960 MHz, 10 dBi gain across 1710-2700 MHz, and up to 11 dBi gain across high-frequency 3400-3800 MHz 5G bands. This balanced amplification across low, mid, and high frequencies maximizes connection speeds and range even in challenging or fringe reception zones.
Built for outdoor environments, the antenna features an IP65-rated ingress protection housing that reliably shields the internal components from water spray, dust, and harsh weather conditions. Its durable radome ensures reliable performance in demanding residential, commercial, or rural settings throughout all seasons.
For straightforward integration with existing routers, modems, and gateway equipment, the antenna is pre-fitted with twin 5-meter low-loss HDF 195 cables terminated with standard SMA male connectors. Its flexible mounting design supports installation directly onto outdoor walls or poles to facilitate precise alignment towards base transceiver stations.
- Antenna Type: Directional Cross-Polarised Panel Antenna
- MIMO Configuration: 2x2 MIMO
- Frequency Range: 690 - 960 MHz / 1710 - 2700 MHz / 3400 - 3800 MHz
- Antenna Gain: 6 - 11 dBi (9 dBi @ 698-960 MHz, 10 dBi @ 1710-2700 MHz, 11 dBi @ 3400-3800 MHz)
- Network Compatibility: 2G (GSM), 3G (UMTS 900/2100), 4G (LTE 800/900/1800/2100/2600), 5G (3400-3800 MHz)
- Connector Type: 2 x SMA Male
- Cable Type: HDF 195
- Cable Length: 5 m
- Ingress Protection: IP65
- Mounting Type: Wall and Pole Mount
- Dimensions: 290 mm x 265 mm x 55 mm
- Net Weight: 1.8 kg
The Poynting XPOL-2-5G is a high-gain directional cross-polarised 2x2 MIMO antenna engineered to significantly boost 2G, 3G, 4G LTE, and 5G cellular reception across 690 to 3800 MHz bands.
The Poynting XPOL-2-5G directional cross-polarised antenna is designed to provide robust and high-performing cellular signal reception across multiple generations of mobile network standards, including 2G, 3G, 4G LTE, and 5G. Housed in a compact, weather-resistant enclosure, the unit integrates two separately fed cross-polarised elements configured for 2x2 MIMO operation, ensuring optimal data throughput and link stability.
Engineered with wideband capability, this antenna covers the full 690 to 3800 MHz frequency spectrum, delivering up to 9 dBi gain across 698-960 MHz, 10 dBi gain across 1710-2700 MHz, and up to 11 dBi gain across high-frequency 3400-3800 MHz 5G bands. This balanced amplification across low, mid, and high frequencies maximizes connection speeds and range even in challenging or fringe reception zones.
Built for outdoor environments, the antenna features an IP65-rated ingress protection housing that reliably shields the internal components from water spray, dust, and harsh weather conditions. Its durable radome ensures reliable performance in demanding residential, commercial, or rural settings throughout all seasons.
For straightforward integration with existing routers, modems, and gateway equipment, the antenna is pre-fitted with twin 5-meter low-loss HDF 195 cables terminated with standard SMA male connectors. Its flexible mounting design supports installation directly onto outdoor walls or poles to facilitate precise alignment towards base transceiver stations.
- Antenna Type: Directional Cross-Polarised Panel Antenna
- MIMO Configuration: 2x2 MIMO
- Frequency Range: 690 - 960 MHz / 1710 - 2700 MHz / 3400 - 3800 MHz
- Antenna Gain: 6 - 11 dBi (9 dBi @ 698-960 MHz, 10 dBi @ 1710-2700 MHz, 11 dBi @ 3400-3800 MHz)
- Network Compatibility: 2G (GSM), 3G (UMTS 900/2100), 4G (LTE 800/900/1800/2100/2600), 5G (3400-3800 MHz)
- Connector Type: 2 x SMA Male
- Cable Type: HDF 195
- Cable Length: 5 m
- Ingress Protection: IP65
- Mounting Type: Wall and Pole Mount
- Dimensions: 290 mm x 265 mm x 55 mm
- Net Weight: 1.8 kg
Poynting XPOL-2-5G Directional 2x2 MIMO 4G/5G Antenna
- Regular price
- β¬149,90
- Sale price
- β¬149,90
- Regular price
-
β¬199,99
