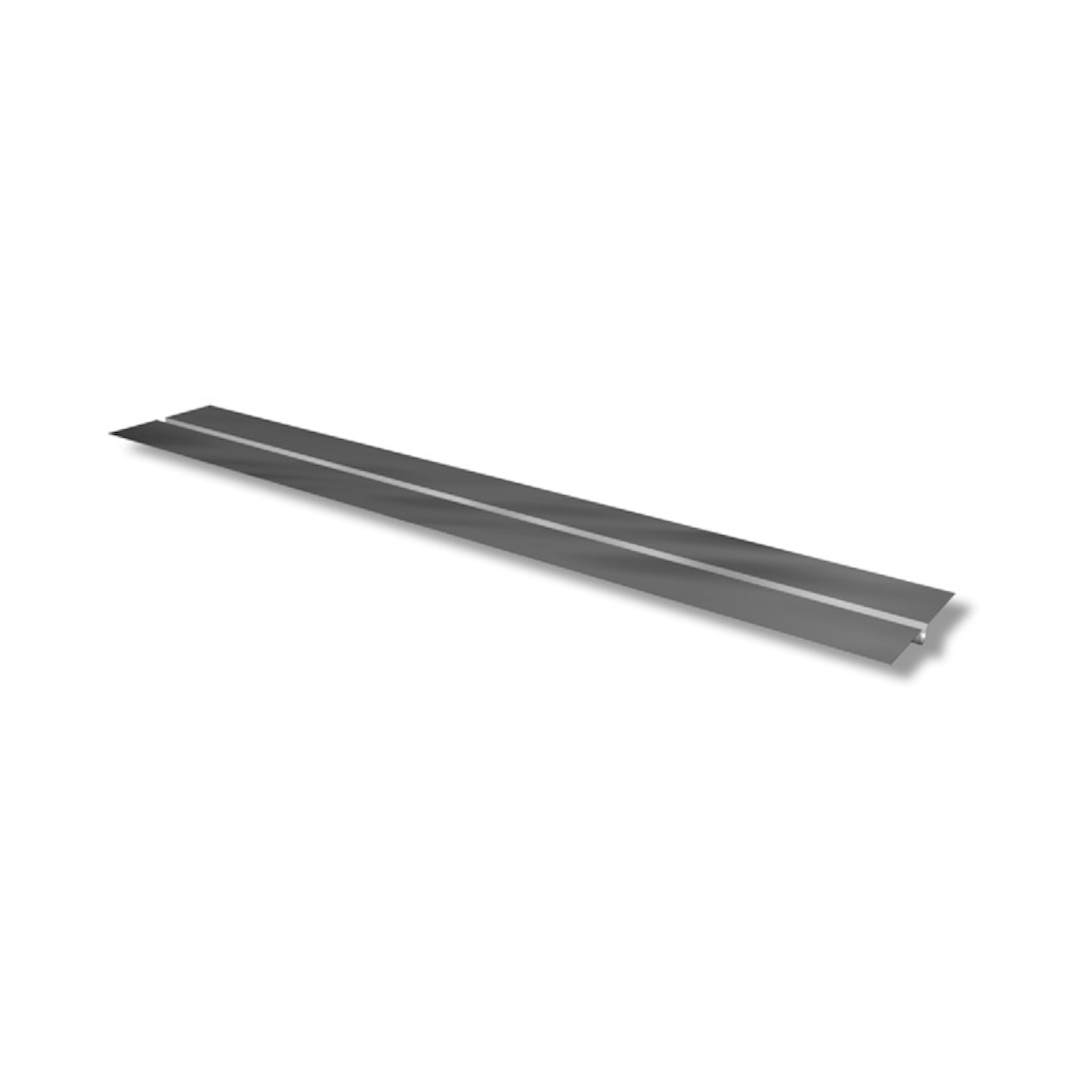

The LK Systems 16/190 (D) is a 0.45 mm heat distribution plate designed for 16 mm underfloor heating pipes, engineered to provide uniform thermal dispersion across various floor constructions.
The LK Systems 16/190 (D) Heat Distribution Plate is an essential component designed to optimize the efficiency and performance of hydronic underfloor heating systems. Engineered from 0.45 mm sheet metal in a silver finish, it delivers rapid and even thermal conductivity from the heating pipes throughout the floor surface.
Specifically tailored for use with 16 mm diameter LK Universal pipes, the plate securely holds the heating pipe in place, ensuring direct contact and maximizing heat transfer without hot spots or cold zones.
For simplified and flexible installation, the plate features three integrated snap-off notches (knäckanvisningar). These break points allow installers to easily customize and adapt the length of each plate on-site without the need for heavy cutting tools.
The 16/190 heat distribution plate offers broad compatibility across multiple LK floor heating systems. It is ideally suited for LK HeatFloor 22 slotted chipboards, battened/furring floor constructions, LK EPS slotted insulation boards (30/50/70 mm at c/c 200 mm pipe spacing), and LK Silencio 36 acoustic underfloor systems.
Measuring 1150 mm in length and 190 mm in width with a lightweight design of just 0.31 kg, it combines structural stability with effortless handling during underfloor heating installation projects.
- Brand: LK Systems
- Article Number: 2418009
- Material: Sheet metal (0.45 mm)
- Color: Silver
- Pipe Compatibility: LK Universal Pipe dim 16 mm
- Length: 1150 mm
- Width: 190 mm
- Snap-off Points: 3 integrated break lines for length adjustment
- Weight: 0.31 kg
- System Compatibility: LK HeatFloor 22, LK EPS 30/50/70 (c/c 200 mm), LK Silencio 36, Furring strips / battens
The LK Systems 16/190 (D) is a 0.45 mm heat distribution plate designed for 16 mm underfloor heating pipes, engineered to provide uniform thermal dispersion across various floor constructions.
The LK Systems 16/190 (D) Heat Distribution Plate is an essential component designed to optimize the efficiency and performance of hydronic underfloor heating systems. Engineered from 0.45 mm sheet metal in a silver finish, it delivers rapid and even thermal conductivity from the heating pipes throughout the floor surface.
Specifically tailored for use with 16 mm diameter LK Universal pipes, the plate securely holds the heating pipe in place, ensuring direct contact and maximizing heat transfer without hot spots or cold zones.
For simplified and flexible installation, the plate features three integrated snap-off notches (knäckanvisningar). These break points allow installers to easily customize and adapt the length of each plate on-site without the need for heavy cutting tools.
The 16/190 heat distribution plate offers broad compatibility across multiple LK floor heating systems. It is ideally suited for LK HeatFloor 22 slotted chipboards, battened/furring floor constructions, LK EPS slotted insulation boards (30/50/70 mm at c/c 200 mm pipe spacing), and LK Silencio 36 acoustic underfloor systems.
Measuring 1150 mm in length and 190 mm in width with a lightweight design of just 0.31 kg, it combines structural stability with effortless handling during underfloor heating installation projects.
- Brand: LK Systems
- Article Number: 2418009
- Material: Sheet metal (0.45 mm)
- Color: Silver
- Pipe Compatibility: LK Universal Pipe dim 16 mm
- Length: 1150 mm
- Width: 190 mm
- Snap-off Points: 3 integrated break lines for length adjustment
- Weight: 0.31 kg
- System Compatibility: LK HeatFloor 22, LK EPS 30/50/70 (c/c 200 mm), LK Silencio 36, Furring strips / battens
LK Systems 16/190 (D) Heat Distribution Plate for Underfloor Heating
- Regular price
- €2,90
- Sale price
- €2,90
- Regular price
-
€4,35
